Uni-Flon SG – Composite Hose
9UFLSG
Special chemical service composite hoses are built to meet the demands of today’s highly aggressive media. Superior chemical resistance is achieved with a PTFE inner liner, reinforced with multiple plies of polyester and polypropylene films which form the composite construction. Rated for full vacuum.
Available in diameters from 1″ to 10″
Operating Temperature: -40ºF to +250ºF / -40ºC to +121ºC
Maximum Length: 100 feet. (10″ – 80ft.)
Uni-flon SG

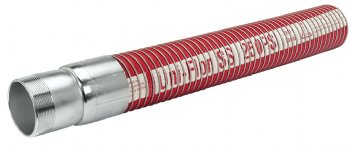

Uni-flon SS
Standard Cover:Red
Uni-CHEM® Composite Hose Assemblies meet USCG 154.500; are manufactured in compliance with BS 5842 and are available with EN 13765 compliant construction. Marine Service Applications: All Uni-CHEM® hose styles are constructed to marine service specifications in accordance with US Coast Guard spec.154.500 and I.M.O regulations.
*WARNING! Elevated temperatures can change the chemical resistance rating of hose. Check the chemical resistance charts published by Novaflex to verify that the chemical to be transferred is rated for use with the polypropylene tube at the temperature & concentrations listed. Most chemicals become more aggressive the higher the temperature, reducing the ability of the tube material to withstand them. Compatibility information is available from Novaflex. If no data exists, it is the users responsibility to determine if the hose is compatible with the chemical to be transferred. Never use Novaflex Composite Hose above the ratings listed by Novaflex.
