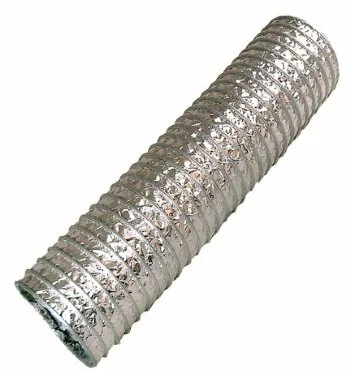

U-Lok 700
UL700
Welding exhaust high temperature fume extraction ducting is designed specifically for improved indoor air quality. This single ply heavy duty duct provides high temperature service and extra durability. This welding exhaust duct is constructed with a non-glue construction and a flame-retardant fabric.
Applications
- Welding fume control
- Steel cut-off
- Elevated temperatures
- Grinder exhaust.
Construction:
Product Code: 3UL700X
Material: Tri-laminate Fiberglass
Coating: aluminized polyester/polyamid
Construction: Mechanical bond, corrosion resistant helix
Diameter: 3″ to 24″. (Larger sizes available on request)
Bend radius = 1.5 x I.D.
Weight: 6″ I.D. =.8 lbs/ft.
Standard length: 25 ft
Compression ratio: 6:1.
Temperature Range: -20F to +300F (intermittent)
