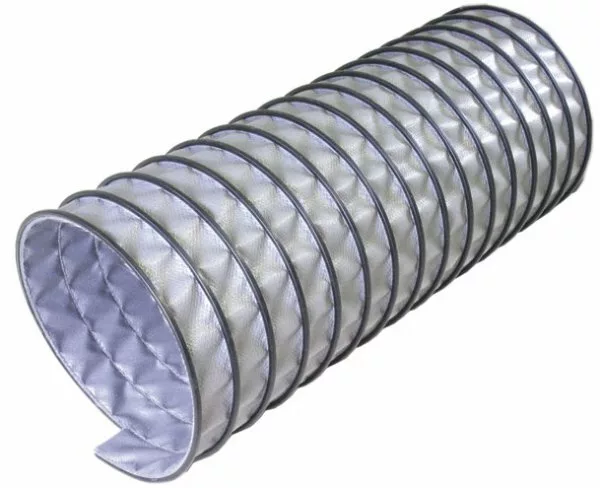

U-Lok 401
3UL401X
The combination of standard external helix as a scuff guard and a non-glue construction results in the industry standard high-temperature hose.
Applications
- Automobile exhaust hose reel
- Gas exhaust control
- Hot fume control
- Hot air supply and removal
- Not recommended for diesel applications.
- A negative pressure fan system with ambient air inlet is recommended to maximize effectiveness and life of duct. It is important to size the duct diameter according to the exhaust output.
Construction:
Product code: 3UL401X
Material: Fiberglass/Silicone
Construction: Mechanical bond, corrosion resistant helix.
Diameters: 2” to 24” I.D.
Bend radius: = 1.5”x I.D.
Weight: 6” I.D. = 1.1 lbs/ft.
Length: 25 ft.
Compression Ratio: 5:1
Temperature range: -65°F to +500°F intermittent.
Colour: Metallic Grey
*Also available with stainless steel helix
