U-Lok 2000
3UL2000

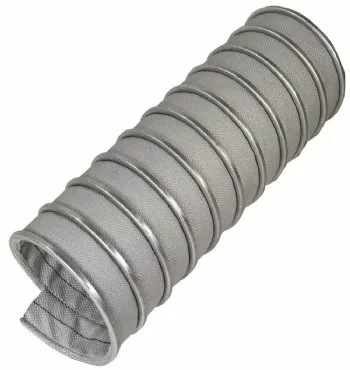

This flexible three ply ceramic V4A/SS reinforced duct is designed for ultra high temperature resistance 3 ply with ceramic textile filler.
Applications
- Fume exhaust systems where a negative pressure system is incorporated
- Engine testing vehicle maintenance, indoor environment
- High temperature fume recovery
- Heat shield or compensator
- Furnace construction
- Iron and steel works
- Air velocity should be less than 50m/sec
Construction:
Product code: 3UL2000
Material: Alumina coated, textile glass fabric reinforced with fine V4A wire,
coated E-Glass ceramic cloth filler.
Construction: Mechanical bond, steel helix.
Diameters: 4” to 24” I.D.
Weight: 6” I.D. = 2.2 lbs/ft.
Length: 25 ft.
Compression Ratio: 3:1
Temperature range: Working temperature:–200°F to +1500°F. (Intermittent to +1832°F.)
Colour: Metallic Grey
The life of all fabric ducts can be greatly extended when sized correctly according to equipment exhaust requirements. When exhaust fume leakage is of a concern a negative pressure fan system should be incorporated. Please consult a Novaflex factory salesperson for correct sizing for diesel, caustic or high velocity exhaust applications. This will aid in reducing exhaust temperatures and static pressures. Diesel exhaust particulate can cause abrasion in exhaust applications. The amount of particulate expelled in diesel exhaust can effect the useful service life. Where exhaust fume leakage is of concern a negative pressure fan system should be incorporated.
