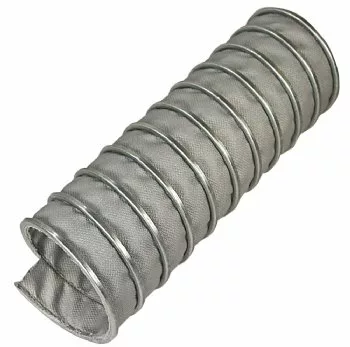

U-Lok 1500
3UL1500
A more robust, two ply high temperature service duct. Two plies high temperature resistant coated fabric offers a longer service life.
Applications
- Hot air extraction
- Heat shield or compensator
- Furnace construction
- Iron and steel works
- *air velocity should be less than 50m/sec
Construction:
Product code: 3UL1500
Material: Alumina coated, textile glass fabric reinforced with fine V4A wire.
Construction: Mechanical bond, galvanized steel helix
(also available stainless steel helix).
Diameters: 4” to 24” I.D. Larger sizes available.
Weight: 6” I.D. =2.01 lbs/ft.
Length: 25 ft.
Compression Ratio: 4:1
Temperature range: -200°F to +1500°F. Intermittent.
Colour: Grey
The life of all fabric ducts can be greatly extended when sized correctly according to equipment exhaust requirements. When exhaust fume leakage is of a concern a negative pressure fan system should be incorporated. Please consult a Novaflex factory salesperson for correct sizing for diesel, caustic or high velocity exhaust applications. This will aid in reducing exhaust temperatures and static pressures. Diesel exhaust particulate can cause abrasion in exhaust applications. The amount of particulate expelled in diesel exhaust can effect the useful service life. Where exhaust fume leakage is of concern a negative pressure fan system should be incorporated.
