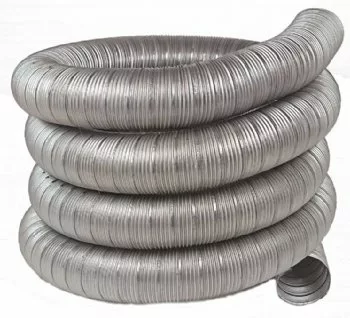

T-Lok 3003

Applications:

• Ideal for stationary bends
• Elbow replacement for low pressure
• Air movement
• Fume control
• Heating, cooling
• Dehumidifying

Construction:

Product code: 3UL3003
Material: Aluminum
Construction: Triple mechanical lock
Diameters: 2” to 24”. (Larger sizes available on request)
Length: 10 ft
Bend radius = 1.5 x I.D.
Weight: 6” I.D. =1.02 lbs/ft. (2 ply)
Compression: 3:1
Temperature Range: -60°F to +600°F
(also available in 2ply for extra strength or higher negative pressure)

Rated Velocity: 4000 f/m (20.3 m/s)
Positive Pressure: 12” w.g. (3.0 kPa)
Negative Pressure: 1” w.g. (0.25 kPa)

ULC Listing: CLASS 1 AIR DUCT/CONNECTOR

Novaflex patented triple lock construction provides for an air tight seam and added strength. Metal Flex is ideal for stationary applications where bends are required or need to be maintained. Easy to bend into position and ultra lightweight.
SPECIALTY METAL TUBING / HIGH TEMP FUME CONTROL
