Specifications
| NOMINAL SIZE (inch) | Approx OD (inch) | Rec Min Bend Radius @ 72° F (inch) | Approx Weight (lbs/ft) |
|---|---|---|---|
| 1-1/2 | 1.88 | 1.5 | .36 |
| 2 | 2.43 | 2 | .48 |
| 2-1/2 | 2.96 | 2.5 | .61 |
| 3 | 3.54 | 3 | .69 |
| 4 | 4.56 | 4 | .92 |
| 5 | 5.51 | 5 | 1.13 |
| 6 | 6.52 | 6 | 1.24 |
| 8 | 8.75 | 10 | 2.42 |

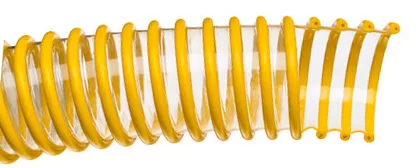

SPIRALITE® W187-00
Corrugated Polyurethane Vapor Recovery Hose with Static Wire
APPEARANCE / CONSTRUCTION:
Clear polyurethane tube with yellow PVC helix and static wire
BENEFITS:
-Lightweight and highly flexible
-Resistant to chemical vapors and light abrasives
GENERAL APPLICATIONS:
-Gasoline vapor recovery for use with Spiralite 5100
-Ducting dust and light abrasives
TEMPERATURE RANGE:
-30F TO +140F
STANDARD LENGTHS:
1-1/2″ through 6″ 100 feet
8″ 50 feet
