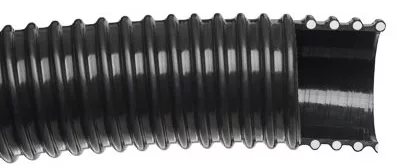

Polyurethane Lined PVC Suction Hose
APPEARANCE / CONSTRUCTION:
-Black PVC wall with white rigid PVC helix. Smooth interior tube with polyurethane lining
-Also available in CLEAR version (U125-00)
BENEFITS:
-Excellent abrasion resistance and flexibility
GENERAL APPLICATIONS:
-Abrasive material handling
-Short blast recovery
-Industrial vacuums
-Pellet & grain transfer
TEMPERATURE RANGE:
-30F TO +130F
STANDARD LENGTHS:
2″ through 4″ 100 feet
| NOMINAL SIZE (inch) | Approx OD (inch) | Rec WP @ 72° F | Vacuum Rating @ 72° (in/Hg) | Rec Min Bend Radius @ 72° F (inch) | Approx Burst Pressure @ 72° F (psi) | Approx Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| 1-1/2 | 2.07 | 100 | 28 | 4 | 300 | .55 |
| 2 | 2.66 | 100 | 28 | 4 | 310 | .88 |
| 3 | 3.86 | 85 | 28 | 6 | 260 | 1.48 |
| 4 | 4.87 | 70 | 28 | 8 | 210 | 2.30 |
