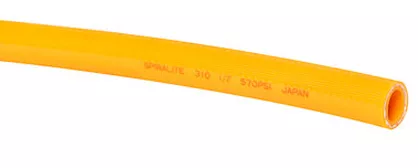

PVC Yellow 570 PSI Spray Hose
APPEARANCE / CONSTRUCTION:
Ribbed yellow PVC cover, smooth tube. Heavy braid reinforcement.
Made in Japan
BENEFITS:
-Economical and high quality
GENERAL APPLICATIONS:
-Agricultural spraying
-Pest control
TEMPERATURE RANGE:
-10F TO +130F
STANDARD LENGTHS:
300′
3/8″ and 1/2″ also available in 400′
| NOMINAL SIZE (inch) | Approx ID (inch) | Approx OD (inch) | Max Working Pressure @ 72° F (psi) | Design Burst Pressure @ 72° F (psi) | Approx Weight (lbs/300) |
|---|---|---|---|---|---|
| 1/4 | 19/64 | 17/32 | 570 | 1,710 | 24 |
| 3/8 | 25/64 | 43/64 | 570 | 1,170 | 35 |
| 1/2 | 33/64 | 13/16 | 570 | 1,170 | 57 |
| 5/8 | 40/64 | 31/32 | 570 | 1,170 | 64 |
| 3/4 | 3/4 | 1-5/64 | 570 | 1,170 | 80 |
