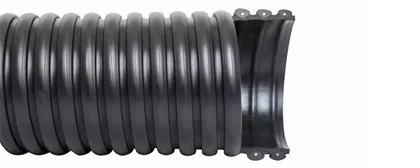

EPDM Rubber Hose Polyethylene/Solid Wire Helix
APPEARANCE / CONSTRUCTION:
EPDM Rubber tube, polyethylene helix with integrated, solid metal wire. Corrugated exterior, smooth interior.
BENEFITS:
-Wire helix resists deformation at higher temperatures
-Good flexibility in higher temperature suction application
-Polyethylene helix reduces drag
GENERAL APPLICATIONS:
-Suction application in higher temperature conditions
-Fly ash suction applications
-Vacuum trucks
TEMPERATURE RANGE:
-30F TO +220F
STANDARD LENGTHS:
3″ through 6″ 100 feet
8″ 50 feet
| NOMINAL SIZE (inch) | Approx OD (inch) | Rec WP @ 72° F (psi) | Vacuum Rating (in/Hg) | Rec Min Bend Radius @ 72° F (inch) | Approx Burst Pressure @ 72° F (psi) | Approx Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| 3 | 3.58 | 30 | 28 | 6 | 100 | 1.45 |
| 4 | 4.69 | 29 | 28 | 6 | 90 | 2.20 |
| 5 | 5.81 | 28 | 28 | 10 | 85 | 3.25 |
| 6 | 6.82 | 28 | 28 | 10 | 85 | 3.91 |
| 8 | 8.56 | 25 | 28 | 15 | 75 | 5.20 |
