PVC Heavy-Duty Oil-Resistant Suction Hose
APPEARANCE / CONSTRUCTION:

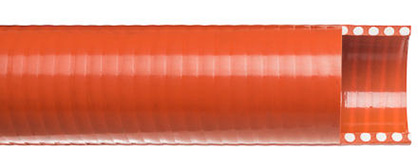

Orange PVC with white helix. Smooth wall, smooth interior
BENEFITS:
-Specially compounded from oil-resistant PVC
-Excellent alternative to more expensive rubber hose in certain applications
GENERAL APPLICATIONS:
-General suction of light oils and animal fats
-Waste oil recovery
-Light septic service
-Vapor recovery
TEMPERATURE RANGE:
-10F TO +130F
STANDARD LENGTHS:
1″ through 6″ 100 feet
| NOMINAL SIZE (inch) | Approx OD (inch) | Rec WP @ 72° F (psi) | Vacuum Rating (in/Hg) | Rec Min Bend Radius @ 72° F (inch) | Approx Weight (lbs/ft) |
|---|---|---|---|---|---|
| 1 | 1.29 | 100 | 28 | 3 | .31 |
| 1-1/4 | 1.57 | 90 | 28 | 4 | .43 |
| 1-1/2 | 1.87 | 90 | 28 | 5 | .57 |
| 2 | 2.44 | 58 | 28 | 7 | .72 |
| 2-1/2 | 2.78 | 78 | 28 | 10 | 1.19 |
| 3 | 3.54 | 78 | 28 | 12 | 1.62 |
| 4 | 4.65 | 70 | 28 | 16 | 2.56 |
| 5 | 5.65 | 55 | 28 | 21 | 3.15 |
| 6 | 6.80 | 50 | 28 | 24 | 4.64 |
