Spiralite-120

SPIRALITE® 120-00

PVC Green Corrugated Suction Hose

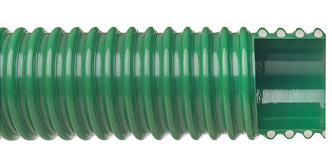

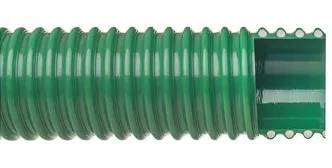

APPEARANCE / CONSTRUCTION:

Green PVC with white helix. Corrugated cover, smooth wall and interior.

BENEFITS:

-Good combination of durability and flexibility

-Smooth interior prevents material blockage

GENERAL APPLICATIONS:

-General suction for water and light chemical solutions

TEMPERATURE RANGE:

-10F TO +130F

STANDARD LENGTHS:

1-1/2″ through 6″ 100 feet

8″ and above 20′, 25′, 30′

Specifications
Downloads

Specifications

NOMINAL SIZE (inch)	Approx OD (inch)	Rec WP @ 72° F (psi)	Vacuum Rating (in/Hg)	Rec Min Bend Radius @ 72° F (inch)	Approx Burst Pressure @ 72° F (psi)	Approx Weight (lbs/ft)
1-1/2	1.87	50	28	3	150	.38
2	2.41	40	28	4	120	.58
2-1/2	2.98	40	28	5	120	.79
3	3.54	35	28	6	105	1.07
4	4.65	35	28	8	105	1.70
6	6.98	35	28	15	105	4.26
8	9.14	35	28	18	105	6.57
10	11.30	30	21	28	90	9.37
12	13.31	25	15	36	75	11.11
