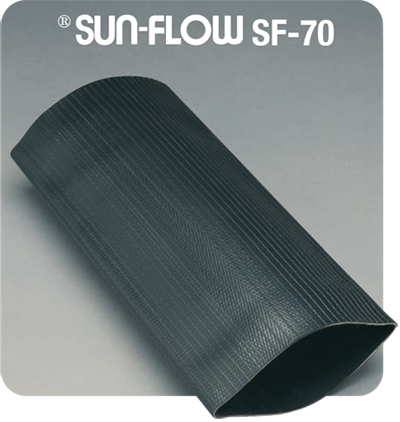

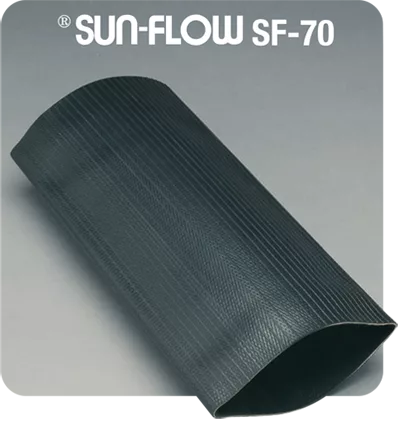

CIRCULAR WOVEL NITRILE RUBBER BLACK
| █ COVER: | NBR Ribbed. Resistant to oil, abrasion, and weathering. | |
| █ TEMP. RANGE: | -20°F to 200° F. | |
| █ APPLICATIONS: | Industrial wash down, Pump discharge submersible pump discharge, Bypass systems Irrigation/Watering, Fertilizer distribution, Cable cover, Pollution control flotation, Limited oil, & Chemical use, Dewatering jetting. |
|
| █ STND LENGTH: | 200 ft. |
SIZE |
lbs/ft |
PRESSURE |
PULL |
||
| 1-1/2″ | 0.08″ | 0.21 lbs | 150 psi | 1,980 lbs | |
| 2″ | 0.08″ | 0.30 lbs | 150 psi | 2,860 lbs | |
| 3″ | 0.10″ | 0.46 lbs | 150 psi | 3,960 lbs | |
| 4″ | 0.10″ | 0.64 lbs | 150 psi | 5,280 lbs | |
| 6″ | 0.12″ | 1.11 lbs | 150 psi | 11,000 lbs | |
| 8″ | 0.12″ | 1.51 lbs | 150 psi | 14,520 lbs | |
