Code: SF-60

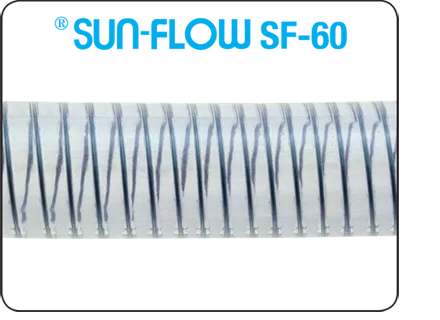

P.V.C. SPRING WIRE
SUCTION HOSE
| █ APPLICATIONS: | Food and Beverage Dispensing Coolant, Non-Toxic formulation conforming to FDA requirements. | |
| █ CONSTRUCTION: | One Spring Wire, Clear PVC Wall | |
| █ TEMP. RANGE: | 20°F to 150° F. When Temperature is -15°C and Colder, please DO NOT Handle or Transport Hoses. | |
| █ CAUTION: | For liability purposes, if temperature exceeds 110°F the working pressure will go down. Please check with factory to ensure sufficient safety factor. |
at 70°F psi |
|||||
| 1/4″ | 1/2″ | 210 psi | 100 ft | 9 lbs. | |
| 3/8″ | 5/8″ | 180 psi | 100 ft | 12 lbs | |
| 1/2″ | 13/16″ | 150 psi | 100 ft | 21 lbs | |
| 5/8″ | 1″ | 100 psi | 100 ft | 32 lbs | |
| 3/4″ | 1-1/8″ | 100 psi | 100 ft | 36 lbs | |
| 1″ | 1-3/8″ | 84 psi | 100 ft | 47 lbs | |
| 1-1/4″ | 1-3/4″ | 84 psi | 50 ft | 39 lbs | |
| 1-1/2″ | 2″ | 84 psi | 50 ft | 43 lbs | |
| 2″ | 2-1/2″ | 70 psi | 50 ft | 56 lbs | |
