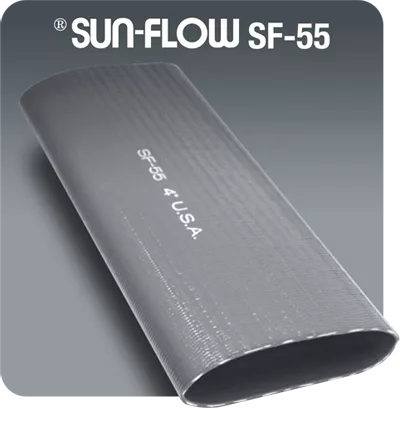

Code: SF-55 GRAY
Recommended for sprinkler, pivot and water transport – this hose has less diameter growth and elongation therefore allowing for much greater ease of re-coupling after use.
| █ TOUGH HEAVY DUTY APPLICATIONS: | Sprinkler, Pivot & Traveler, Water Transportaion. (Pivot & Traveler use 3″, 4″, 5″, 6″ only) |
|
| █ TEMP. RANGE: | -5°F to 170° F. When Temperature is -15°C and Colder, please DO NOT Handle or Transport Hoses. | |
| █ CONSTRUCTION: | 3-Ply Polyester Yarns. Both tube and cover are extruded simultaneously to obtain maximum bonding. | |
| █ CAUTION: | For liability purposes, if temperature exceeds 110° F the working pressure will go down. Please check with factory to ensure sufficient safety factor. |
SIZE |
WALL |
at 70°F psi |
300ft |
||
| 1-1/2″ | 1.61″ | 0.063″ | 150 psi | 60 lbs | |
| 2″ | 2.08″ | 0.087″ | 150 psi | 108 lbs | |
| 3″ | 3.07″ | 0.100″ | 150 psi | 194 lbs | |
| 4″ | 4.13″ | 0.114″ | 100 psi | 280 lbs | |
| 5″ (128 mm) | 5.07″ | 0.130″ | 100 psi | 400 lbs | |
| 6″ | 6.10″ | 0.146″ | 100 psi | 500 lbs | |
| 8″ | 8.19″ | 0.197″ | 80 psi | 766 lbs | |
Industrial Specifications
SIZE |
||
| 8″ | 160 | 480 |
