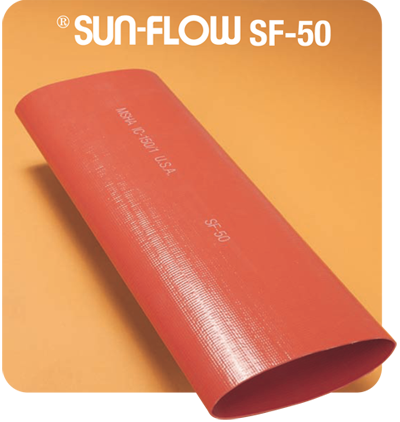

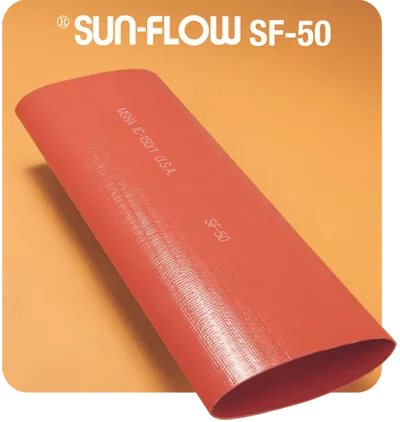

P.V.C. 150 PSI RANGE (Open End) BRICK RED DISCHARGE HOSE
| █ STND LENGTH: | 300 ft. per bale (Special order for longer lengths) | |
| █ TEMP. RANGE: | -5° to 170° F. When Temperature is -15°C and Colder, please DO NOT Handle or Transport Hoses. | |
| █ APPLICATIONS: | Mines, Construction, etc. | |
| █ CONSTRUCTION: | 3-Ply Polyester Yarns. Both tube and cover are extruded simultaneously to obtain maximum bonding. | |
| █ FLAME RESISTANT: | USMSHA IC-150/1 (Size 1-1/2″, 2″, 2-1/2″) Special Order Only. |
|
| █ CAUTION: | For liability purposes, if temperature exceeds 110° F the working pressure will go down. Please check with factory to ensure sufficient safety factor. |
SIZE |
WALL |
at 70°F psi |
B.P. psi |
300ft (USA) |
300ft (JAPAN) |
|
| 1-1/2″ | 1.61″ | 0.079″ | 150 psi | 450 | 80 lbs. | 64 lbs |
| 2″ | 2.09″ | 0.087″ | 150 psi | 450 | 103 lbs | 85 lbs |
| 2-1/2″ | 2.56″ | 0.091″ | 150 psi | 450 | 124 lbs | 119 lbs |
| 3″ | 3.07″ | 0.095″ | 150 psi | 450 | 164 lbs | 158 lbs |
| 4″ | 4.13″ | 0.102″ | 150 psi | 450 | 254 lbs | 225 lbs |
| 6″ | 6.18″ | 0.119″ | 150 psi | 450 | 400lbs | 375 lbs |
| 8″ | 8.19″ | 0.134″ | 115 psi | 350 | 566 lbs | |
