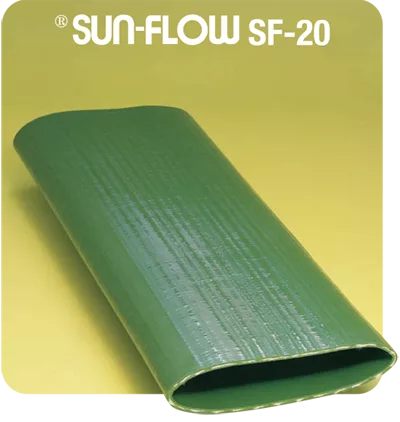

P.V.C. MINE OR IRRIGATION HOSE,GREEN
Recommend coupling by internally expanded method or crimping.
| █ TOUGH HEAVY DUTY APPLICATIONS : | Mines, Irrigation, Construction, etc., for use with high tension and high working pressure. | |
| █ TEMP. RANGE: | -5°F to 170° F. When Temperature is -15°C and Colder, please DO NOT Handle or Transport Hoses. | |
| █ STND. LENGTH: | 300 ft. per bale (Special order for longer lengths) | |
| █ CONSTRUCTION: | 3-Ply Polyester Yarns. Both tube and cover are extruded simultaneously to obtain maximum bonding. | |
| █ CAUTION: | For liability purposes, if temperature exceeds 110° F the working pressure will go down. Please check with factory to ensure sufficient safety factor. |
SIZE |
WALL |
at 70°F psi |
B.P. psi |
APPROX AT CUT |
Wt. 300ft |
|
| 1-1/2″ | 1.61″ | 0.090″ | 200 psi | 630 | 2,300 | 78 lbs |
| 2″ | 2.08″ | 0.100″ | 200 psi | 630 | 4,700 | 108 lbs |
| 2-1/2″ | 2.56″ | 0.100″ | 175 psi | 530 | 5,300 | 120 lbs |
| 3″ | 3.07″ | 0.118″ | 200 psi | 600 | 11,000 | 201 lbs |
| 4″ | 4.13″ | 0.157″ | 200 psi | 600 | 16,000 | 340 lbs |
| 6″ | 6.18″ | 0.197″ | 150 psi | 600 | 25,000 | 656 lbs |
| 8″ | 8.19″ | 0.236″ | 150 psi | 600 | 52,200 | 1023 lbs |
