Specifications
SIZE |
WALL |
at 70°F psi |
B.P. psi |
Wt. 300ft |
|
| 10″ | 10.20″ | 0.126″ | 80 psi | 230 | 650 lbs |
| 12″ | 12.20″ | 0.134″ | 60 psi | 230 | 830 lbs |

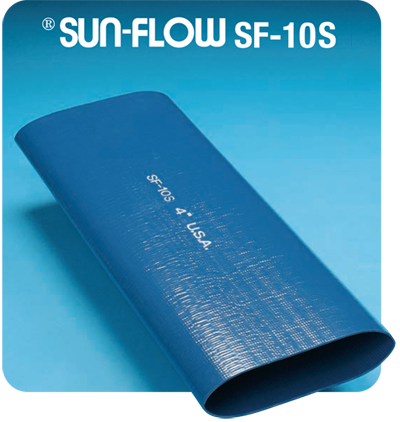

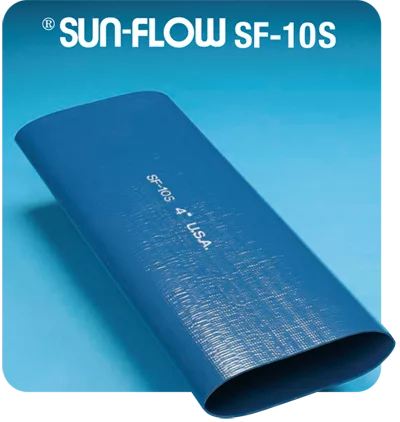

SF-10S
P.V.C. BLUE WATER DISCHARGE HOSE
Higher W.P. and Heavier Gauge than the SF-10
| █ STND. LENGTH: | 300 ft. per bale (Special order for longer lengths) | |
| █ TEMP. RANGE: | -15° to 170° F. When Temperature is -15° and Colder, please DO NOT Handle or Transport Hoses | |
| █ APPLICATIONS: | Mines, Construction, Irrigation, etc. | |
| █ CONSTRUCTION: | 3-Ply Polyester Yarns. Both tube and cover are extruded simultaneously to obtain maximum bonding. | |
| █ CAUTION: | For liability purposes, if temperature exceeds 110° F the working pressure will go down. Please check with factory to ensure sufficient safety factor. |
