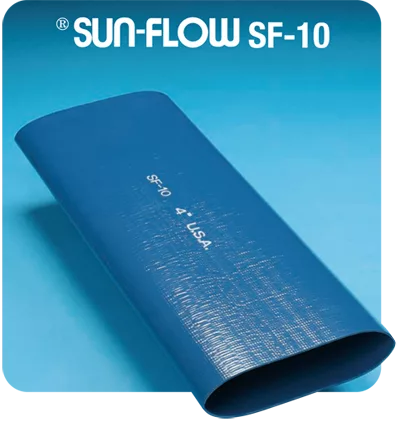

sunflowsf10

SF-10

P.V.C. BLUE WATER DISCHARGE HOSE

█ STND. LENGTH: 300 ft. per bale (Special order for longer lengths)
█ TEMP. RANGE: -5°F to 170° F. When Temperature is -15°C and Colder, please DO NOT Handle or Transport Hoses
█ APPLICATIONS: Mines, Construction, Irrigation, etc.
█ CONSTRUCTION: 3-Ply Polyester Yarns. Both tube and cover are extruded simultaneously to obtain maximum bonding.
█ CAUTION: For liability purposes, if temperature exceeds 110° F the working pressure will go down. Please check with factory to ensure sufficient safety factor.

Specifications

NORMAL
SIZE
I.D
APPROX.
WALL
MAX. W.P.
at 70°F psi
DESIGN
B.P. psi
APPROX.
Wt. 300ft
3/4″ 0.79″ 0.048″ 140 psi 425 23 lbs
1″ 1.04″ 0.052″ 110 psi 340 31 lbs
1-1/4″ 1.30″ 0.056″ 80 psi 255 42 lbs
1-1/2″ 1.61″ 0.059″ 80 psi 240 56 lbs
2″ 2.09″ 0.059″ 80 psi 240 73 lbs
2-1/2″ 2.56″ 0.059″ 65 psi 200 90 lbs
3″ 3.07″ 0.063″ 80 psi 240 108 lbs
4″ 4.13″ 0.067″ 70 psi 210 158 lbs
5″ 5.07″ 0.071″ 40 psi 130 190 lbs
6″ 6.16″ 0.075″ 60 psi 200 259 lbs
8″ 8.15″ 0.087″ 35 psi 100 390 lbs
10″ 10.20″ 0.111″ 35 psi 100 564 lbs
12″ 12.13″ 0.118″ 35 psi 100 729 lbs
14″ 14.14″ 0.118″ 30 psi 85 810 lbs
16″ 16.14″ 0.118″ 30 psi 85 924 lbs
Code: SF-10S P.V.C. BLUE WATER DISCHARGE HOSE
(Higher W.P. and Heavier Gauge)
NORMAL
SIZE
I.D
APPROX.
WALL
MAX. W.P.
at 70° psi
DESIGN
B.P. psi
APPROX.
Wt. 300ft
10″ 10.20″ 0.126″ 80 psi 230 650 lbs
12″ 12.20″ 0.134″ 60 psi 230 830 lbs
