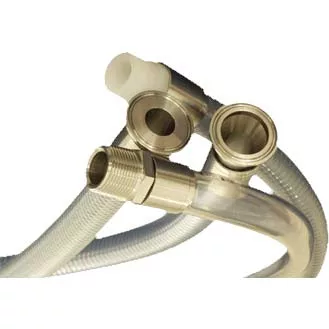

Specifications
Specifications | |||||||||
---|---|---|---|---|---|---|---|---|---|
Maximum working pressure decreases as temperature increases. Rated pressures can only be obtained with proper coupling procedures |
|||||||||
Temperature Range: 25°F (-4°C) to 150°F (+65°C) | |||||||||
I.D. Nominal (in.) |
O.D. Nominal (in.) |
Maximum Working Pressure (psi) @70°F(20°C) |
Maximum Working Pressure (psi) @122°F(50°C) |
Vacuum Rating (in/Hg) |
Minimum Bend Radius (in.) |
Approximate Weight Per 100 Foot (lbs) |
|||
1/4 | 0.500 | 250 | 80 | 29.9 | 1.0 | 10 | |||
3/8 | 0.625 | 150 | 80 | 29.9 | 1.5 | 13 | |||
1/2 | 0.813 | 150 | 80 | 29.9 | 2.0 | 21 | |||
5/8 | 1.000 | 150 | 65 | 29.9 | 2.5 | 30 | |||
3/4 | 1.125 | 150 | 65 | 29.9 | 3.0 | 36 | |||
1 | 1.375 | 100 | 45 | 29.9 | 4.0 | 44 | |||
1 1/4 | 1.750 | 100 | 50 | 29.9 | 5.0 | 74 | |||
1 1/2 | 2.000 | 100 | 35 | 29.9 | 6.0 | 84 | |||
2 | 2.500 | 100 | 35 | 29.9 | 8.0 | 112 |
