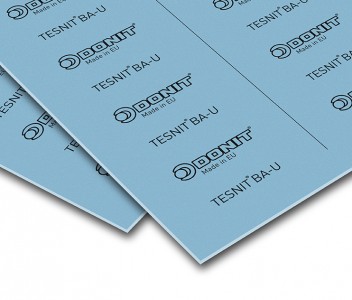

BA-U

TESNIT® BA-U combines very good thermal, chemical, and mechanical properties that makes TESNIT® BA-U as a general-purpose gasket material. It is well designed for gas and potable water supplies.

Composition

Aramid fibres, inorganic fillers, NBR binder. Optional steel wire mesh or expanded steel insert on request.

Properties

Material for general purpose with good mechanical and thermal properties and low gas permeability.

APPROVALS AND COMPLIANCES

• ABS
• AGA AS 4623
• BAM (Oxygen)
• DNV GL
• DVGW DIN 30653
• DVGW DIN 3535-6
• DVGW W270
• EC 1935/2004
• ELL
• SVGW DIN 3535-6
• TA Luft (VDI 2440)
• WRAS

Surface treatment

Surface finish is 4AS. Optional graphite or PTFE finish on request.

SHEET DIMENSIONS

Sheet size (mm): 1500 x 1500 | 3000 x 1500 | 4500 x 1500
Thickness (mm): 0.5 | 1.0 | 1.5 | 2.0 | 3.0
Other dimensions and thicknesses are available on request.
